Sewerin Gas Leak Detectors

LaserGasPatroller LGP 800 Mobile Gas Leak Survey System

Sewerin LGP 800 Description:

Product Overview

The Sewerin LaserGasPatroller LGP 800 is the next generation of vehicle-mounted gas leak survey equipment designed for the inspection of underground natural gas distribution systems. This system uses advanced laser-based technology to detect methane gas migrating through the soil to street level, allowing operators to survey extensive pipeline networks quickly and accurately.

The complete system pairs the compact LGP 800 measuring unit with the powerful SeCuRi® SAT documentation software, creating a comprehensive solution for gas utilities and service providers. As the vehicle drives over underground gas lines, eight specialized bell probes collect air samples and analyze them in real-time using selective Tunable Diode Laser Spectroscopy (TDLS) technology. The technology specifically targets methane without interference from other gases.

Features and Benefits of the Gas Leak Survey Equipment:

Advanced Detection:

  • Selective methane measurement using TDLS laser technology
  • High sensitivity — measurement range 0-40,000 ppm
  • Interference-free operation from other gases
  • Consistent detection regardless of weather

Comprehensive Documentation:

  • GPS positioning with dead reckoning
  • Second-by-second data recording
  • Automatic leak identification and mapping
  • Compatible with existing GIS systems via DXF/DWG formats

Practical Vehicle Implementation:

  • A compact 19″ measurement unit fits various vehicle configurations
  • Low power consumption (12V, 2A max) works with standard vehicle battery
  • Compatible with electric vehicles
  • Eight-probe collection system for standard vehicle widths
  • Configurable alarm outputs for warning lights or sirens
Vehicle mounted gas leak survey system with LaserGasPatroller probe array

Laser Gas Patroller Specifications:

Technical: · Power Supply12V, max 2A
Technical: · Operating Temperature-10°C to +50°C
Technical: · Protection RatingIP20
Technical: · Detection Range0-40,000 ppm methane
Technical: · Dimensions483 x 356 x 267 mm
Technical: · Weight10 kg (15 kg with enclosure)
Technical: · Pump Capacity14 l/min
Technical: · CommunicationBluetooth, USB
Certifications:
  • CE Marking
  • E1310R0010R041330900 certification

Technical Literature & Downloads

Options

Standard System Includes:

  • LGP 800 measurement unit
  • Eight bell probe collection system
  • SeCuRi® SAT software license
  • GPS module with dead reckoning
  • Vehicle integration hardware
  • Calibration equipment

Available Upgrades:

  • Custom vehicle installation
  • Advanced mapping options
  • External alarm systems
  • Training programs
  • Upgrade path for existing Portafid LP Leakplotter users

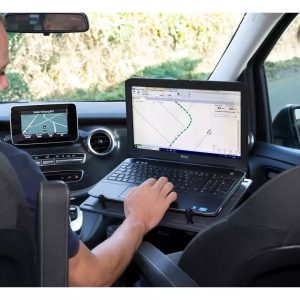

SeCuRi SAT software showing natural gas leak detection mapping results

SeCuRi SAT software showing natural gas leak detection mapping results on a notebook.

Applications

LaserGasPatroller LGP 800 Applications:

  • Distribution pipeline leak surveys
  • Compliance monitoring programs
  • Preventative maintenance inspections
  • Post-construction verification
  • Emergency response screening
  • Urban pipeline network monitoring
  • Hard-to-access area assessment
  • Biogas facility perimeter monitoring
Bell probe collection system for the LaserGasPatroller LGP 800 gas leak survey equipment

Bell probe collection system for the LaserGasPatroller LGP 800 gas leak survey equipment
