Odorant Tanks and Containment

We offer odorant tanks and containment skids through GPL Odorizers for gas odorization systems, both vertical and horizontal orientation, from 60 to 2000 gallons. Take a look at our capabilities.

Odorant Storage Tanks

If you are interested in a complete odorization system, visit odorant injection systems.

Request a Quote

Features & Benefits

Odorant Vessel Features

odorant tanks

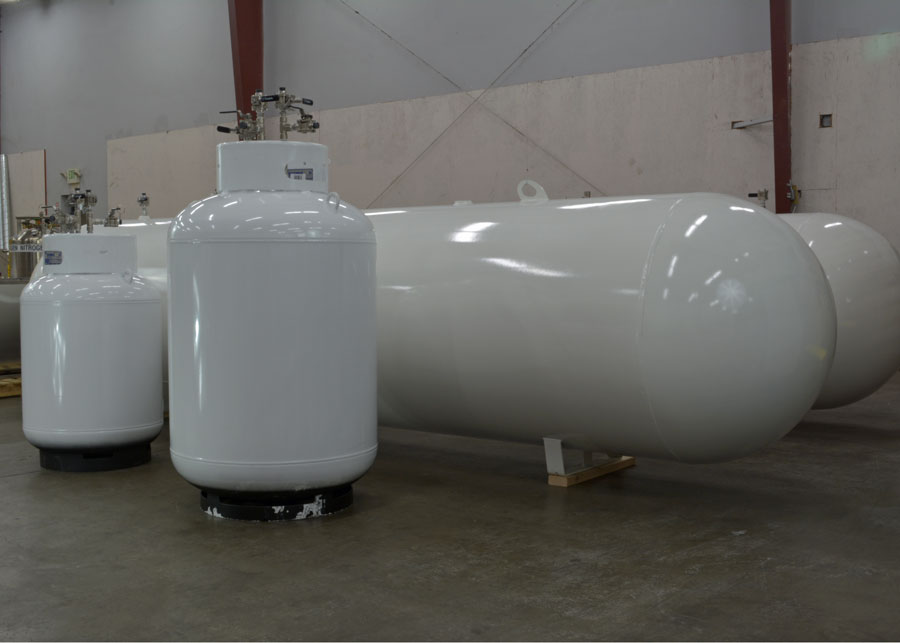

Odorant Tanks are available in a vertical, and horizontal orientation, from 60 to 2000 gallons.

  • Standard ASME 250 PSI tank
  • Custom ASME tanks up to 500 PSI available
  • Vertical or horizontal orientation
  • The vertical tank is stainless steel; volumes are 60 and 120 gallons
  • Horizontal tanks range from 250 gallons and up; typically galvanized steel
  • Odorant fill and supply connection - 1/2" Swagelok 60 series ball valves
  • Vent fill and relief valves - 1/2" Swagelok 60 series ball valves
  • Blanket gas connection - 1/2" Swagelok 60 series ball valves
  • Galvanized containment vessels to withstand years of exposure to outside elements
Options

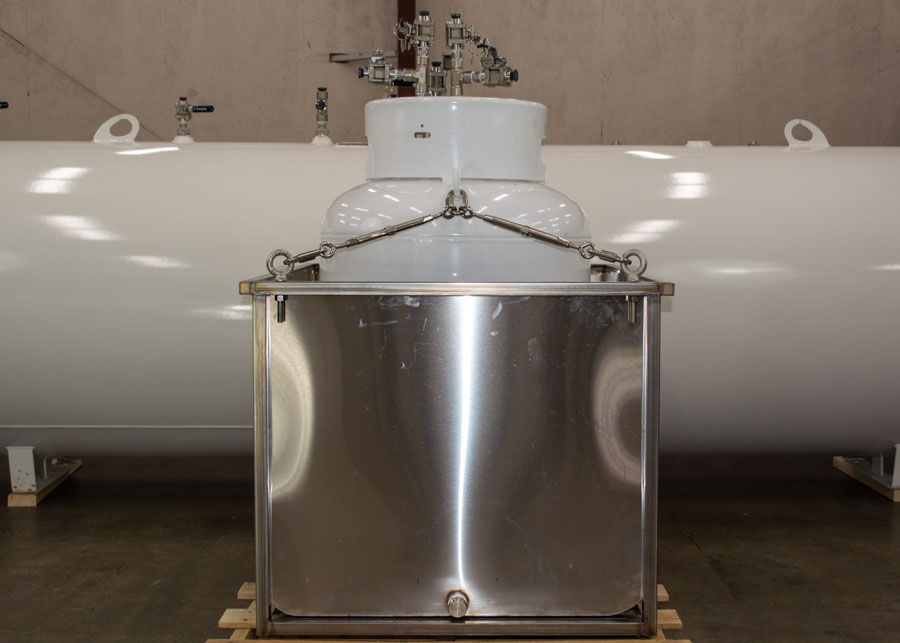

vertical tank and containmentOptions for Odorant Storage Tanks

Nitrogen blanket gas system
