Thermoelectric Generators (TEG)
Gentherm Global Power Technologies (GPT) is the largest manufacturer of thermoelectric generators (TEGs), which provide an output ranging from 5 to 550 watts. These generators are ideal for supplying power to remote, off-grid applications in environmentally challenging locations requiring up to 5,000 watts.
Gentherm Global Power Technologies TEG
The GPT thermoelectric generators have no moving parts, making them ideal for any long-term unattended operations at remote locations. The TEGs are a reliable, low-maintenance source of DC electrical power for any application where regular utilities are unavailable or unreliable. The company manufactures many models to meet any condition, including hazardous areas.
Remote and Environmentally Challenging Conditions | Critical Pipeline Applications |
|
|
Advantages of GPT Thermoelectric Generators
Highly Reliable – The solid-state design (no moving parts) ensures trouble-free operation and a consistently reliable power supply system
Low Maintenance – Recommended 1 to 2 hours per year for pro-active maintenance
Competitively Priced - Competitive capital and operating costs and lower cost of ownership versus Photovoltaic PV/Solar
Long Life – A single sealed thermopile has a 20-year design life with 0.2% degradation each year, while the generator field experience is over 20 years.
Continuous Operation In All Conditions – The operation is not affected by weather, dust, or other airborne contaminants.
Smooth Operation - Single burner with a 20-year design life is easy to operate and stable in all-weather situations.
Reduced System Size – The environmentally favorable physical layout of GPT generator systems is generally smaller than solar or other generator options.
Increased Security - GPT TEG installations are typically low visibility and can be mounted inside security shelters if needed.
Reduced Battery Requirements - Due to the continuous operation
Extended Battery Life - Due to reduced deep cycling
Quality - Produced to ISO 9001 requirements
F

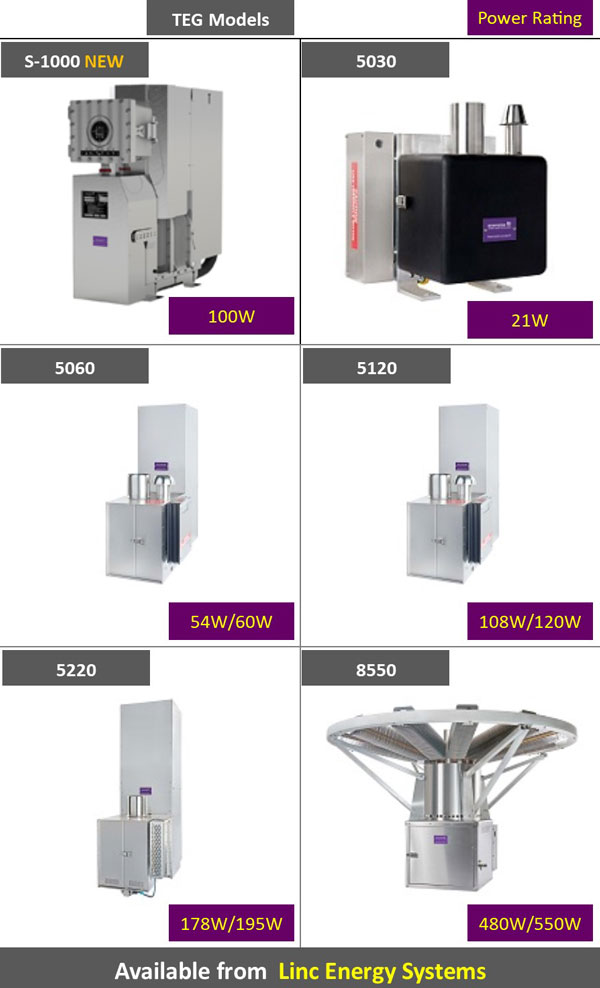

lyers for Thermoelectric Generator TEG Models
Gentherm GPT Overview Brochure (2018)
MODEL 5030 - 21 W
MODEL 5060 - 54W / 60W
MODEL 5120 - 108W /120W
MODEL 5220 - 178 W / 195W
MODEL 8550 - 480W / 550W
MODEL S-1100 - 100W
