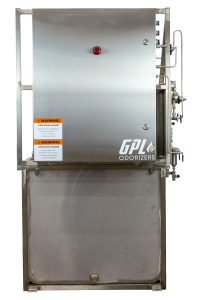

GPL 510 High-Pressure Odorization System - front view showing containment skid

GPL 510 High-Pressure Odorization System

The GPL 510 is a high-pressure odorization system (up to 1480 PSI) designed specifically for low-to medium-flow applications. The attraction of the 510 is that it can be upgraded to the GPL 10000 should its flow demands increase, yet the unit costs 15-25% less than the GPL 10000, saving the users upfront without compromising quality.

High-Pressure Odorization for Low- and Medium-Flow Applications

The GPL 510 maintains the same rigorous quality standards and zero-emission technology that GPL is known for. Whether you’re managing transmission lines, city gate stations, municipal gas systems, or renewable natural gas projects, the GPL 510 delivers precise odorization with superior reliability and environmental responsibility.

Why Choose the GPL 510?

  • Cost-Effective Performance
  • Zero Emissions
  • Odor-Free Operation
  • User-Friendly Design
  • Uncompromised Reliability
  • Precision Odorization
  • Exceptional Adaptability
  • Scalable Solution
  • 24/7 Service Assistance

Request a Quote

Features & Benefits

GPL 510 Key Features:

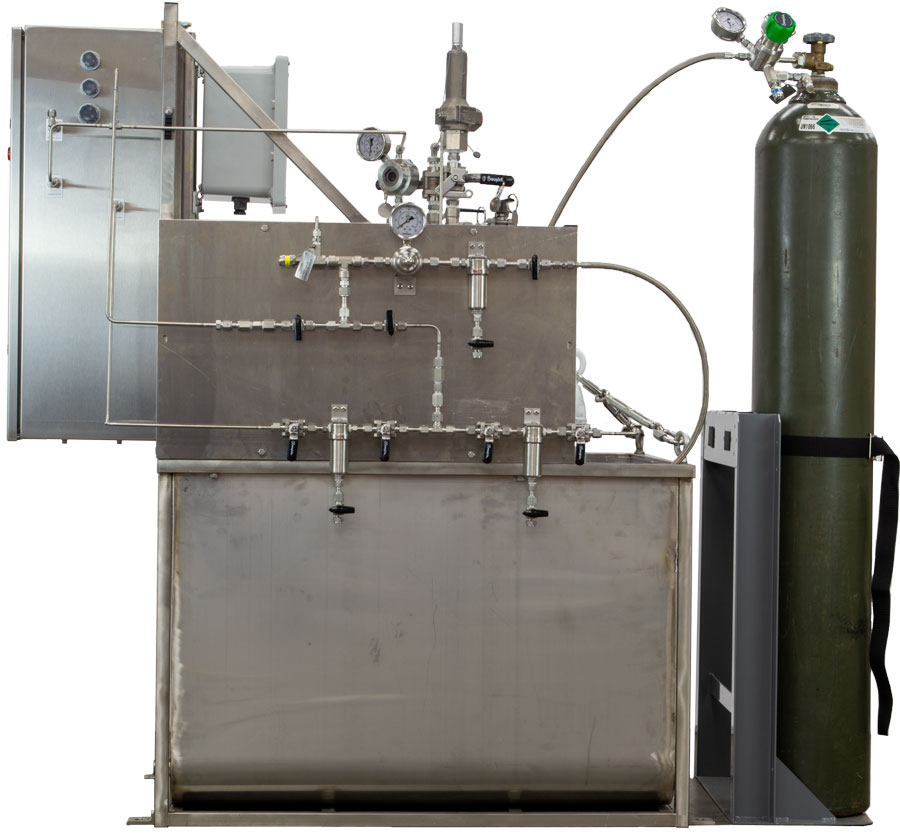

GPL 510 High-Pressure Odorization System - side view showing control panel and containment and blanket gas cylinders

GPL 510 High-Pressure Odorization System - side view showing control panel, containment, and blanket gas cylinders

High-Pressure Capacity: Up to 1480 PSI

  • Wide Flow Range: 0.2 to 5000 MSCFH (@ 0.5 lbs./MMSCFH)
  • Exceptional Turndown Ratio: 25,000:1
  • Versatile Applications: Large city gate stations, transmission lines, municipalities, small city gate stations, post-compressor RNG
  • Future-Proof Design: Upgradable to GPL 10000 for higher flow conditions

Configuration Options:

  • Odorizer Only: Base system for integration with existing infrastructure
  • With Tank and Containment Skid: Complete system with odorant storage and secondary containment

Installation Options:

  • Permanent: Fixed installation for long-term odorization requirements
  • Temporary or Pickling: Short-term applications, including pipe conditioning
  • Mobile Configuration: Complete turnkey system on a movable skid for flexibility across multiple locations
Specifications

Odorizer Technical Details

  • Pipeline Pressure Capability: Up to 1480 PSI
  • Injection Flow Range: 0.2 to 5000 MSCFH (at standard 0.5 lbs./MMSCFH)
  • Turndown Ratio: 25,000:1
  • Emissions: Zero
  • Applications: Transmission lines, city gate stations, municipal gas systems, RNG projects
  • Compatible Gases: Natural gas, RNG, biogas, propane (LP)
