IMAC Systems Gas Valve Lockout Device for Operating Nut Valves

 In Measurement and Control of Natural Gas

IMAC Systems has released a new valve lockout device for gas valves. The IMAC Systems’ Operating Nut Locking Device works with a variety of different manufacturer’s valves that use square operating nuts. These valves typically do not have a secure locking solution, until now.

ball valve lockout device for operating nut valvesOperating Nut Valve Lockout Device

The IMAC Operating Nut Valve Lockout Device is manufactured with high-quality materials and designed for long, maintenance-free operation. The device has a powder-coated steel dome that covers the operating nut, preventing anyone from tampering with the valve flow position. The dome is 3‐7/8″ in diameter and 4‐1/2″ tall. Welded to both sides of the dome is a 5/16″grade 30 galvanized chain; on one side, the chain is 6″ long, while the other side it comes in a choice of 12″, 24″ or 36″. IMAC can also customize the length per customer request.

These locking devices will accommodate most Grove and Cameron ball valves, and Kerotest plug valves.

Abandonment or Deactivation of Gas Lines

The locking device assists the user with staying in compliance when abandoning or deactivating facilities. Federal regulations (49 CFR 192.727) require that the gas company perform certain options, one of which is to install a locking device to prevent someone from trying to open the shutoff valve.

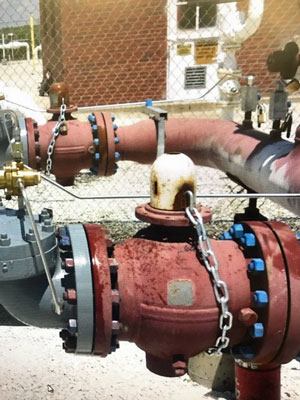

gas valve with square operating nutNicholas Kohart, Executive Vice President of IMAC Systems, said, “We came up with the idea when we saw an ingenious customer retrofit old domes with a chain.”

IMAC Systems, Inc. in Tullytown, Pennsylvania, manufactures the device. Linc Energy Systems is an authorized representative and distributor for IMAC Systems. If you would like more information on the IMAC Systems locking devices, request a quote now.

Request a Quote
