What are the common underground utility location methods?
Underground utility location is a critical safety practice that prevents costly damage, service disruptions, and dangerous accidents. Each year, billions of dollars are spent addressing utility strikes caused by excavation errors. Selecting the right locating method determines project success.

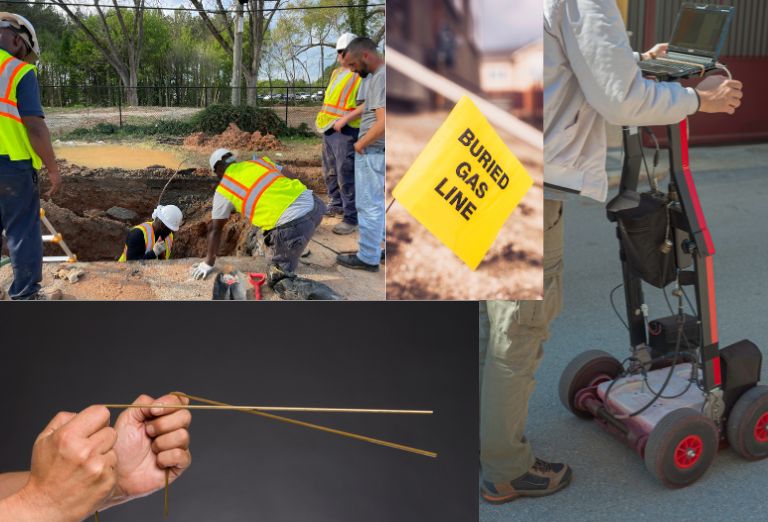

Let’s explore five effective utility location techniques used by professionals today.
1. Electromagnetic Utility Locating: The Industry Standard
Electromagnetic utility locating is the most common method for detecting underground utilities. It uses electromagnetic radio frequencies to identify subsurface utilities containing conductive materials.
- Equipment generates electromagnetic signals
- Signals travel through conductive utility components
- Receivers detect and map buried line locations
Detects:
- Natural gas lines (with tracer wire)
- Electrical cables
- Telephone and cable lines
- Water and sewer lines
- Irrigation systems
Limitations: This method cannot detect non-conductive materials like plastic, asbestos, concrete, or terra-cotta pipes unless they contain conductive elements such as tracer wire. Polyethylene gas lines are only locatable if tracer wire is installed alongside the pipeline.
Depth Capabilities: Effective up to 10–15 feet below the surface. Natural gas distribution lines are typically buried 3–4 feet deep, with transmission lines deeper yet, usually less than 10 feet.
2. Ground Penetrating Radar (GPR): Advanced Detection Technology
Ground-penetrating radar uses high-frequency radio waves to generate detailed subsurface imagery. When the waves hit buried objects, they reflect back to the receiver, creating a visual representation of underground features.
Best For:
- Non-conductive pipes and tanks
- Concrete or ceramic utilities
- Underground storage tanks
- Congested utility areas
Key Limitations:
- Soil type: Performance decreases in clay, shale, or saline soils
- Target size: Buried objects must be roughly one inch in diameter per foot of depth
- Operator skill: Accurate interpretation requires extensive training
Pro Tip: GPR performs best in sandy soils and loses effectiveness in high-conductivity environments.
3. Vacuum and Hydro Excavation: Precision Exposure Methods
Potholing, also known as soft digging, is a method that safely exposes utilities with a lower damage risk.
Vacuum Excavation:
- High-pressure air loosens soil
- Debris vacuumed into containment tank
- Best for stable soil conditions
Hydro Excavation:
- Pressurized water breaks up soil
- Material removed via vacuum system
- Ideal for difficult or frozen soils
Advantages:
- Zero risk of utility damage
- Pinpoint accuracy for depth and location
- Works in all soil types
4. Acoustic Location: Detecting Active Systems
Acoustic methods detect sound frequencies generated by active utility systems, especially from those under pressure or experiencing leaks.
Common Uses:
- Gas leak detection
- Water line breaks
- Pressurized system mapping
- Active pipeline monitoring
This method works best when systems are pressurized or leaking, as they generate distinct sound-based signatures.
5. Traditional Dowsing: Experience Meets Intuition
Though not scientifically substantiated, many seasoned locators report success using dowsing techniques with metal rods—often repurposed coat hangers—to detect buried utilities.
Important Notes:
- Cannot determine depth
- Relies heavily on operator intuition
- Should only supplement other methods
- Effectiveness varies widely
Historical Context: Dowsing has been used since medieval times to locate water and other subsurface features, though its effectiveness remains debated.
Choosing the Right Method for Your Project
For Natural Gas Lines:
- Start with electromagnetic locating (if tracer wire present)
- Use GPR for non-conductive pipes
- Confirm with vacuum or hydro excavation
For Multiple Utility Detection:
- Combine electromagnetic and GPR methods
- Verify locations with potholing
For Challenging Conditions:
- Begin with hydro excavation
- Use acoustic methods for pressurized systems
Safety First: Professional Standards and Best Practices
Never begin excavation without properly locating all utilities. Follow these safety steps:
- Call 811: Always notify your local utility marking service
- Wait for markings: Allow time for utilities to be identified and marked
- Verify: Use multiple detection methods when possible
- Document: Keep clear records of utility locations
- Excavate carefully: Hand dig within marked tolerance zones
The Importance of Tracer Wire in Gas Systems
Polyethylene gas lines require tracer wire for electromagnetic detection. This tracer wire when installed alongside or above the pipeline, creates the conductive path needed for standard locating equipment.
Tracer Wire Benefits:
- Enables detection of plastic gas lines
- Provides continuous location access
- Aids long-term maintenance
- Meets safety standards
Upgrade to German Engineered Utility Location Precision
Sewerin UtiliTrac & UT Series Pipe/Cable Locators Now Available Through Linc Energy Systems
- Folding UtiliTrac design with 3D compass display—under 16 lbs total
- UT 9200/9100/930 series with 30-hour operation and GPS integration
- Glass fiber probe system for plastic pipe detection
- Intelligent frequency scanning and direction recognition
Why Choose Sewerin Through Linc Energy Systems:
- German engineering with local US support
- Comprehensive training and technical expertise
- Seamless integration with existing location methods
- 30+ years of utility industry experience
Schedule Your Sewerin Demo | Call 303.697.6701
Conclusion
Effective underground utility location combines proven methods with professional expertise. While electromagnetic locating is the industry standard, successful projects often require the use of multiple techniques for comprehensive detection.
Whether installing new gas lines, maintaining existing infrastructure, or planning construction, proper utility location protects both people and property. Prevention costs of professional locating services and quality equipment are less than the cost of a utility hit and repair.
